Solid Panel

Seoho die-casted solid aluminum panels are engineered for raised access flooring, delivering maximum strength, durability, and stability. Ideal for cleanrooms, data centers, and heavy-duty industrial environments.

Model Dimension (mm) Concentrated Load
@ 1/2 Edge
STANDARD
ALB-639 600×600×39(T) 500 kgf
ASB-639 600×600×39(T) 600 kgf
ASB-644 600×600×44(T) 800 kgf
ASB-648 / ASB-124 600×600×48(T) 1,000 kgf
HEAVY DUTY
AHB-639 600×600×39(T) 700 kgf
AHB-648 600×600×48(T) 1,200 kgf
AXB-124 600×600×48(T) 1,500 kgf
ATB-124 600×600×48(T) 1,700 kgf
AHB-242 24"×24"×1.89"(T) 2,000 lbs
AXB-242 24"×24"×1.89"(T) 3,000 lbs
※ Dimensions indicate panel size and thickness without vinyl tile.
※ All load values measured at 1/2 edge with 2.0 mm deflection.

Finish:

  1. PVC tile

    • Conductive Tile

    • Static Dissipative Tile

  2. E-Coating

    • Black, Silver Colors

  3. Epoxy Powder

    • Hammertone Gray, Hammertone Ivory,
      Black and Silver

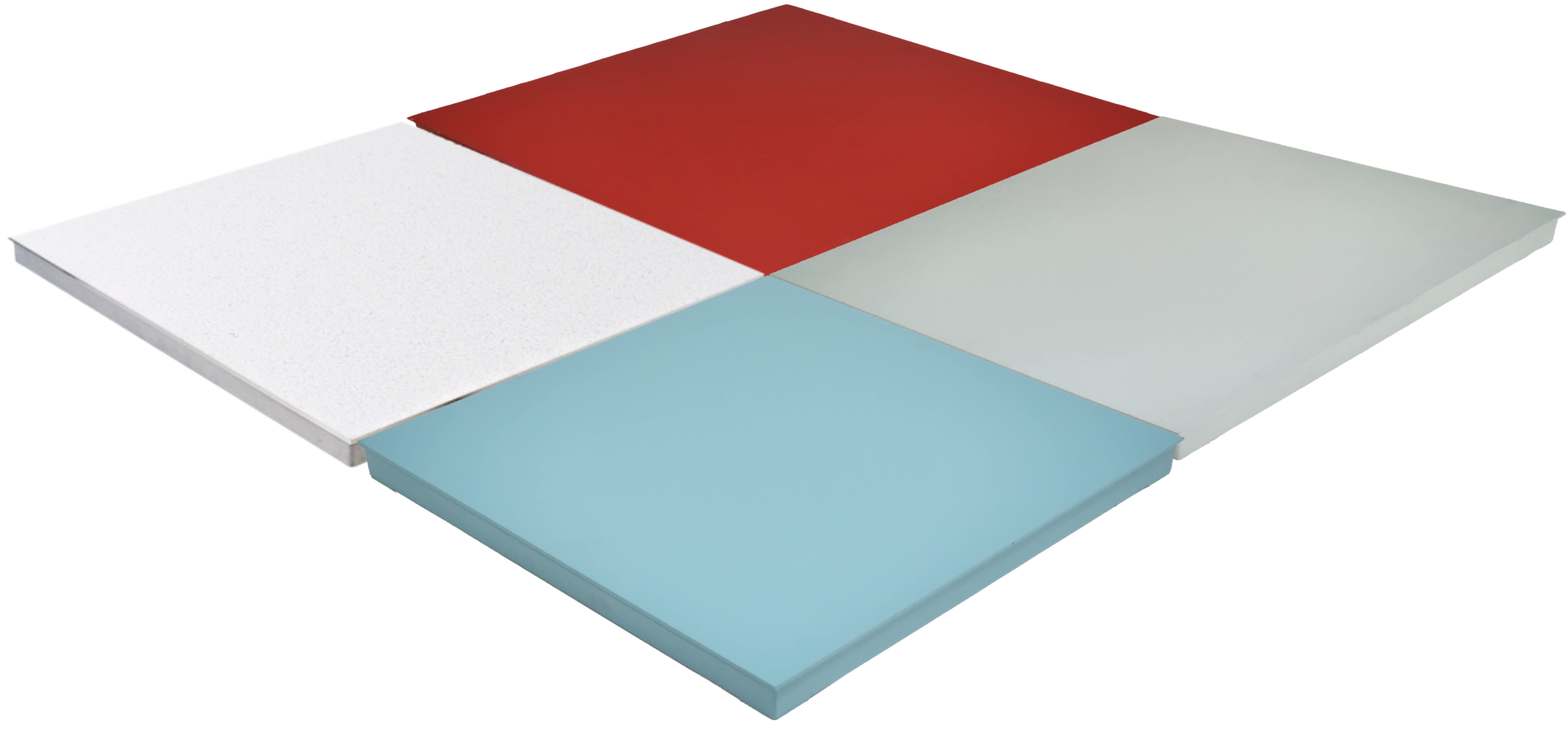

Heavy duty solid aluminum raised floor panel for semiconductor cleanrooms.
